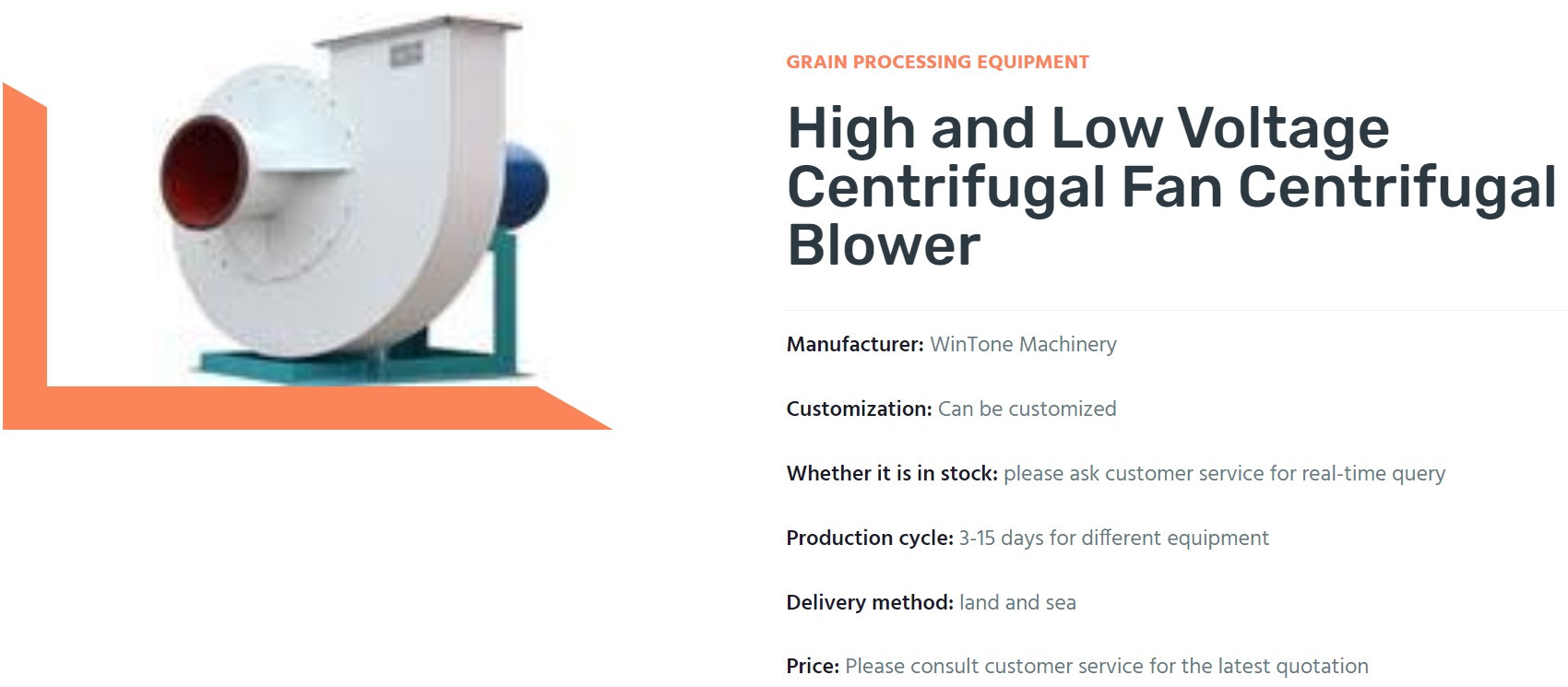

The centrifugal fan is widely used in industry, agriculture, mine and tunnel ventilation. It is widely used in dust removal by ventilation and granularity conveying and powder material conveying by gas system.
Features of centrifugal fan or centrifugal blower:
All steel plates of good quality;
The front of hub is made into arc shape which is beneficial for air flow, reducing vortex and energy consumption;
The impeller has pass balance test, steady and vibrationless;
The centrifugal blower is widely used for ventilation, dedusting, air conveying in industry, agriculture, mining, refrigeration, architecture, chemistry, textile, flour and feed processing plants.
Technical parameter:
| Equipment | Model | Air Volume (m3/h） |
Wind Pressure （mmH2o） |
Power (kw) |
Main Usage |
| Low voltage centrifugal air blower |
4-72-No2.5-5.5 | 1000-19400 | 55-401 | 1.1-18.5 | Dust removal by ventilation |
| 4-79-No5 | 9100-17720 | 201-334 | 15 | ||
| High voltage centrifugal air blower |
6-30-No4.5-7.5 | 1860-14145 | 311-994 | 2.2-45 | Material hoisting, material conveying horizontally |
| 6-41-No7.5-7.8 | 14000-23000 | 650-1020 | 55-75 | ||
| 6-23-No5-5.5K | 1300-3512 | 344-530 | 3-3.5 | ||
| TYNo7.3-8 | 9550-17506 | 856-1129 | 37-55 | ||
| 8-23No3.5-3.75 | 1800-3045 | 78-11129 | 1.1-1.5 |
